Synthesis (Under Development for Enhanced Features)

This guide covers synthesis workflows for FPGA and ASIC targets.

Overview

ALY supports multiple synthesis backends:

Figure 18 Synthesis Backends

Basic Usage

# Synthesize specific module with Vivado (default)
aly synth --module cpu_core --part xc7a100tcsg324-1

# Specify tool explicitly
aly synth --module cpu_core --tool vivado --part xc7a100tcsg324-1

# Use Yosys
aly synth --module cpu_core --tool yosys

# Use constraint set
aly synth --module cpu_core --part xc7a100tcsg324-1 --constraints arty_a7

Synthesis Flow

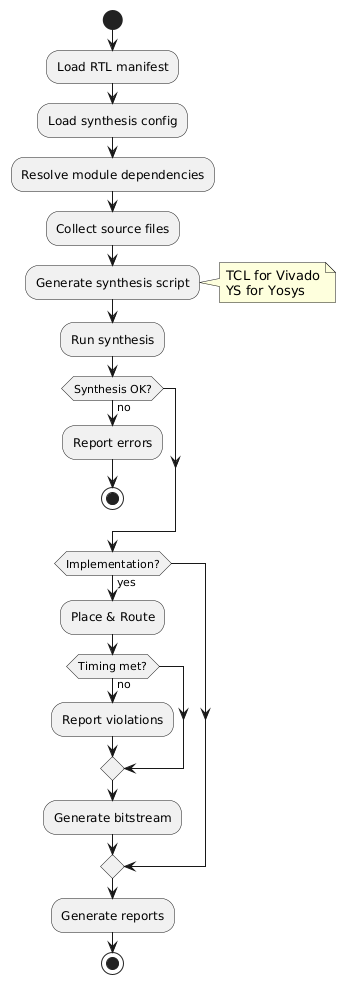

Figure 19 Synthesis Flow

Target Configuration

Configure synthesis targets in .aly/config.yaml:

synthesis:
  default_tool: vivado
  build_dir: build/synth

  targets:
    arty_a7:
      tool: vivado
      part: xc7a100tcsg324-1
      top: fpga_top
      constraints:
        - constraints/arty_a7/pins.xdc
        - constraints/arty_a7/timing.xdc
      options:
        strategy: Flow_PerfOptimized_high

    nexys_a7:
      tool: vivado
      part: xc7a100tcsg324-1
      top: fpga_top
      constraints:
        - constraints/nexys_a7.xdc

    ice40_hx8k:
      tool: yosys
      tech: ice40
      top: my_design
      constraints:
        - constraints/ice40.pcf

    asic_sky130:
      tool: yosys
      tech: generic
      library: sky130_hd
      top: chip_top

Vivado Synthesis

Tool Configuration

synthesis:
  tools:
    vivado:
      bin: vivado
      threads: 8
      batch_opts:
        - -mode
        - batch
        - -notrace

Vivado Options

Option	Description
strategy	Synthesis strategy (Default, Flow_PerfOptimized_high, etc.)
flatten_hierarchy	Hierarchy handling (none, rebuilt, full)
retiming	Enable register retiming
fsm_extraction	FSM encoding (auto, one_hot, sequential)

Example:

targets:
  high_perf:
    tool: vivado
    part: xcvu9p-flga2104-2L-e
    top: top_module
    options:
      strategy: Flow_PerfOptimized_high
      flatten_hierarchy: rebuilt
      retiming: true

Yosys Synthesis

Yosys supports multiple technology targets.

Tool Configuration

synthesis:
  tools:
    yosys:
      bin: yosys
      script_ext: .ys

Technology Targets

Tech	Description	Backend
generic	Generic cells	No P&R
ice40	Lattice iCE40	nextpnr-ice40
ecp5	Lattice ECP5	nextpnr-ecp5
gowin	Gowin FPGAs	nextpnr-gowin

Example:

targets:
  icebreaker:
    tool: yosys
    tech: ice40
    device: up5k
    package: sg48
    top: top_module
    constraints:
      - constraints/icebreaker.pcf

ASIC Synthesis

For ASIC flows, configure cell libraries:

synthesis:
  libraries:
    sky130_hd:
      liberty: libs/sky130_fd_sc_hd__tt_025C_1v80.lib
      verilog: libs/sky130_fd_sc_hd.v
      lef: libs/sky130_fd_sc_hd.lef
      description: Sky130 high density cells

  targets:
    asic_top:
      tool: yosys
      tech: generic
      library: sky130_hd
      top: chip_top
      options:
        abc_script: scripts/abc_opt.script

Constraints

Apply design constraints:

# Use constraint set by name
aly synth --module cpu_core --part xc7a100tcsg324-1 --constraints arty_a7

# Use constraint file directly
aly synth --module cpu_core --part xc7a100tcsg324-1 \
    --constraints constraints/custom.xdc

XDC (Vivado)

# Clock definition
create_clock -period 10.0 -name sys_clk [get_ports clk]

# Pin assignments
set_property PACKAGE_PIN E3 [get_ports clk]
set_property IOSTANDARD LVCMOS33 [get_ports clk]

# Timing constraints
set_input_delay -clock sys_clk 2.0 [get_ports data_in]
set_output_delay -clock sys_clk 1.0 [get_ports data_out]

PCF (Yosys/nextpnr)

set_io clk J3
set_io led[0] C3
set_io led[1] B3
set_io btn A1

Reports

Generate synthesis reports:

aly synth --module cpu_core --part xc7a100tcsg324-1 --report

Available reports:

Report	Description
utilization	Resource usage (LUTs, FFs, BRAMs)
timing	Timing summary and violations
power	Power estimation
drc	Design rule checks

Reports are saved to:

build/synth/vivado/reports/
+-- utilization.rpt
+-- timing_summary.rpt
+-- power.rpt

Build Artifacts

Synthesis outputs:

build/synth/
+-- vivado/
|   +-- project.xpr         # Vivado project
|   +-- project.runs/       # Run directories
|   +-- fpga_top.bit        # Bitstream
|   +-- fpga_top.ltx        # Debug probes
|   +-- reports/            # Reports
+-- yosys/
    +-- synth.ys            # Synthesis script
    +-- synth.json          # Netlist
    +-- pnr.log             # P&R log
    +-- design.bin          # Bitstream

Multi-Clock Designs

Handle multiple clock domains:

constraints:
  clocks:
    sys_clk:
      period: 10.0
      waveform: [0.0, 5.0]
      pin: E3

    pcie_clk:
      period: 4.0
      waveform: [0.0, 2.0]
      pin: F10

    ddr_clk:
      period: 2.5
      waveform: [0.0, 1.25]

Debug Cores

Add debug cores (Vivado):

targets:
  arty_debug:
    tool: vivado
    part: xc7a100tcsg324-1
    top: fpga_top
    options:
      debug_cores:
        - type: ila
          depth: 4096
          probes:
            - signal: cpu/pc
              width: 32
            - signal: cpu/instruction
              width: 32

Troubleshooting

Common Issues

Timing violations:

Check the timing report in the build output directory.

High utilization:

• Check report for specific resources

• Consider design optimizations

• Use larger FPGA part

Synthesis errors:

Check logs in the build directory:

# Check Vivado logs
cat build/synth/vivado/cpu_core/vivado.log

# Check Yosys logs
cat build/synth/yosys/cpu_core/yosys.log

Next Steps

• Constraints (Under Development) - Constraint management

• Linting - Pre-synthesis checks

• Command Reference - Full CLI reference
