Quickstart

This guide walks you through creating and simulating a simple design with ALY.

Create a New Project

Initialize a new project using the basic template:

aly init counter_demo --template basic
cd counter_demo

Project Structure

The template creates this structure:

counter_demo/
+-- .aly/
|   +-- config.yaml       # Project configuration
+-- rtl/
|   +-- manifest.yaml     # RTL module definitions
|   +-- counter.sv        # Sample RTL
+-- tb/
|   +-- manifest.yaml     # Testbench definitions
|   +-- tb_counter.sv     # Sample testbench

Create RTL Module

Edit rtl/counter.sv:

module counter #(
    parameter WIDTH = 8
) (
    input  logic             clk,
    input  logic             rst_n,
    input  logic             enable,
    output logic [WIDTH-1:0] count
);

    always_ff @(posedge clk or negedge rst_n) begin
        if (!rst_n)
            count <= '0;
        else if (enable)
            count <= count + 1'b1;
    end

endmodule

Update rtl/manifest.yaml:

name: counter
type: rtl
language: systemverilog

modules:
  - name: counter
    top: counter
    files:
      - counter.sv

Create Testbench

Edit tb/tb_counter.sv:

module tb_counter;

    logic       clk = 0;
    logic       rst_n;
    logic       enable;
    logic [7:0] count;

    // Clock generation
    always #5 clk = ~clk;

    // DUT
    counter #(.WIDTH(8)) dut (
        .clk    (clk),
        .rst_n  (rst_n),
        .enable (enable),
        .count  (count)
    );

    // Test sequence
    initial begin
        $display("Starting counter test...");

        rst_n = 0;
        enable = 0;
        #20;

        rst_n = 1;
        #10;

        enable = 1;
        #100;

        $display("Count = %d", count);
        assert(count == 10) else $error("Count mismatch!");

        $display("Test PASSED");
        $finish;
    end

endmodule

Update tb/manifest.yaml:

name: counter_tb
type: testbench
language: systemverilog

testbenches:
  - name: tb_counter
    top: tb_counter
    files:
      - tb_counter.sv
    dependencies:
      -  name: counter
         type: rtl

Run Simulation

Simulate using the default tool:

# Run simulation
aly sim --top tb_counter

# Run with waves enabled
aly sim --top tb_counter --waves

# Use a specific simulator
aly sim --top tb_counter --tool verilator

Expected output:

[ALY] Building simulation for tb_counter...
[ALY] Running simulation...
Starting counter test...
Count = 10
Test PASSED
[ALY] Simulation completed successfully

Lint the Design

Check for common issues:

# Lint specific module
aly lint --module counter

# Lint with slang linter
aly lint --module counter --tool slang

Synthesize

Synthesize for an FPGA target:

# Synthesize with Vivado
aly synth --module counter --part xc7a35ticsg324-1L

# Synthesize with Yosys
aly synth --module counter --tool yosys

Workflow Diagram

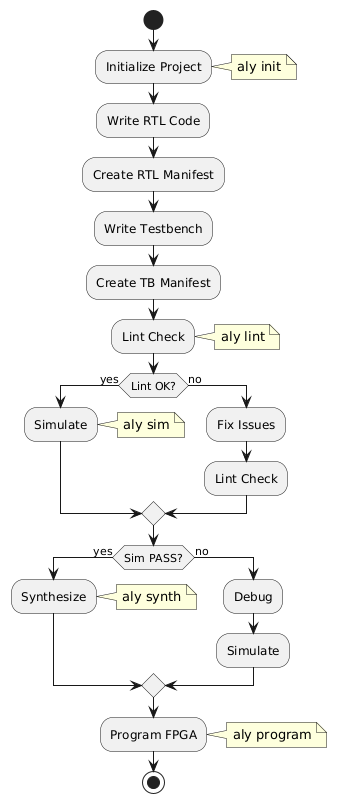

@startuml skinparam backgroundColor transparent skinparam defaultFontName sans-serif start :Initialize Project; note right: aly init :Write RTL Code; :Create RTL Manifest; :Write Testbench; :Create TB Manifest; :Lint Check; note right: aly lint if (Lint OK?) then (yes) :Simulate; note right: aly sim else (no) :Fix Issues; :Lint Check; endif if (Sim PASS?) then (yes) :Synthesize; note right: aly synth else (no) :Debug; :Simulate; endif :Program FPGA; note right: aly program stop @enduml

Figure 1 ALY Development Workflow
