API Reference

This section documents ALY’s Python API for programmatic access.

Overview 

ALY’s API is organized into modules:

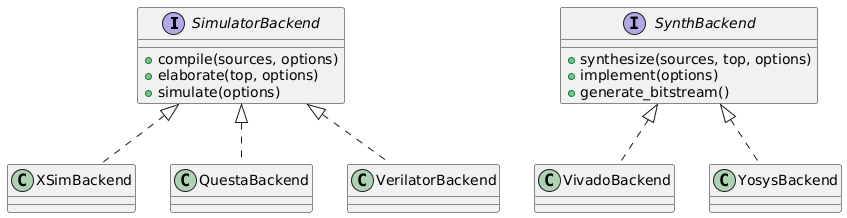

Figure 26 API Module Structure

Configuration API 

ProjectConfig 

class aly.config.ProjectConfig[source]

Bases: object

Unified configuration manager and component registry for ALY projects.

Loads configuration from .aly/ directory and discovers components through manifest.yaml files in configured paths. Provides unified access to all project settings and components.

Example

config = ProjectConfig.load(“.”)

# Access project info print(config.info.name)

# Get RTL block cpu = config.get_rtl_block(“cpu”)

# Get testbench tb = config.get_testbench(“tb_alu”)

# List all components rtl_blocks = config.list_rtl_blocks()

# Resolve dependencies deps = config.resolve_rtl_deps(tb)

__init__(project_root)[source]

Initialize configuration manager.

Parameters:: project_root (Path)

classmethod load(project_root)[source]

Load configuration from project root.

Parameters:: project_root (Path | str) – Path to project root directory
Returns:: Loaded ProjectConfig instance
Raises:: SystemExit – If configuration is missing or invalid
Return type:: ProjectConfig

discover_all()[source]

Scan all configured paths for manifest.yaml files.

This is the main discovery method that populates the component registry. It’s called lazily on first access to any get/list method.

Return type:: None

get(manifest_type, name)[source]

Get a manifest by type and name.

Parameters:

manifest_type (str) – Component type (rtl, ip, testbench, firmware, test_suite)
name (str) – Manifest name

Returns:

Manifest object or None if not found.

Return type:

Any | None

list(manifest_type)[source]

List all manifest names of a specific type.

Parameters:: manifest_type (str) – Component type
Returns:: List of manifest names.
Return type:: List[str]

get_all(manifest_type)[source]

Get all manifests of a specific type.

Parameters:: manifest_type (str) – Component type
Returns:: Dict mapping name to manifest object.
Return type:: Dict[str, Any]

get_unit(kind, name)[source]

Get a unit (rtl_module, testbench, firmware_build, …) by kind and name.

Parameters:

kind (str)
name (str)

Return type:

UnitRef | None

list_units(kind)[source]

List all unit names of a given kind.

Parameters:: kind (str)
Return type:: List[str]

get_rtl_module(name)[source]

Get a single RTL module unit by name.

Parameters:: name (str)
Return type:: UnitRef | None

list_rtl_modules()[source]

List all RTL module unit names.

Return type:: List[str]

iter_rtl_modules()[source]

Iterate over all RTL module units.

Yields:: UnitRef objects for each RTL module.

get_rtl_module_objects()[source]

Get all RTL modules with their parent manifests.

Returns:: module_name -> (module_obj, parent_manifest)
Return type:: Dict

get_rtl_module_files(module_name)[source]

Get compilation files (packages + module files) for a given RTL module.

Module is looked up project-wide, by name.

Parameters:: module_name (str)
Return type:: List[Path]

get_rtl_module_package_files(module_name)[source]

Get package files that apply to a given RTL module.

Parameters:: module_name (str)
Return type:: List[Path]

get_testbench_unit(name)[source]

Get a single testbench unit by name.

Requires that TestbenchManifest exposes a testbenches list and that _register() populates _units[“testbench”].

Parameters:: name (str)
Return type:: UnitRef | None

list_testbench_units()[source]

List all testbench unit names.

Return type:: List[str]

get_testbench(name)[source]

Get a testbench by name (returns Testbench object).

This is a convenience method that returns the testbench object directly, rather than the UnitRef wrapper.

Parameters:: name (str)
Return type:: Any | None

list_testbenches()[source]

List all testbench names.

Convenience alias for list_testbench_units().

Return type:: List[str]

iter_testbenches()[source]

Iterate over all testbench units.

Yields:: UnitRef objects for each testbench.

get_testsuite(name)[source]

Get a test suite by name (searches all testbench manifests).

Returns:: TestSuite object or None if not found.
Parameters:: name (str)
Return type:: Any | None

list_testsuites()[source]

List all test suite names.

Return type:: List[str]

resolve_rtl_deps(unit, _visited=None)[source]

Recursively resolve RTL dependencies for a unit (testbench or RTL module).

Parameters:

unit (Any) – Testbench or RTLModule object with dependencies list
_visited (set | None) – Internal set to track visited modules and prevent cycles

Returns:

List of UnitRef objects (containing both RTLModule obj and RTLManifest manifest) in dependency order (dependencies before dependents)

Return type:

List[UnitRef]

resolve_package_deps(testbench)[source]

Resolve package dependencies for a testbench.

Parameters:: testbench (Any) – Testbench object with dependencies list
Returns:: List of UnitRef objects (containing RTLPackage obj and parent RTLManifest)
Return type:: List[UnitRef]

resolve_package_dep_files(testbench)[source]

Resolve package dependencies for a testbench and return file paths.

Parameters:: testbench (Any) – Testbench object with dependencies list
Returns:: List of resolved Paths for package files.
Return type:: List[Path]

get_package_unit(name)[source]

Get a package unit by name.

Parameters:: name (str) – The package name to look up.
Returns:: UnitRef containing the RTLPackage obj and parent RTLManifest.
Return type:: UnitRef | None

get_package(name)[source]

Get a package by name (returns RTLPackage object).

This is a convenience method that returns the package object directly, rather than the UnitRef wrapper.

Parameters:: name (str)
Return type:: RTLPackage | None

list_packages()[source]

List all named package names.

Return type:: List[str]

iter_packages()[source]

Iterate over all package units.

Yields:: UnitRef objects for each named package.

get_package_file(name)[source]

Get the resolved file path for a package by name.

Parameters:: name (str) – The package name to look up.
Returns:: Resolved Path if found and exists, None otherwise.
Return type:: Path | None

get_package_files_by_names(names)[source]

Get package files by their names (for dependency resolution).

Parameters:: names (List[str]) – List of package names to include.
Returns:: List of resolved paths for the named packages.
Return type:: List[Path]

get_firmware_build(name)[source]

Get a single firmware build unit by name.

Requires that FirmwareManifest exposes a builds list and that _register() populates _units[“firmware_build”].

Parameters:: name (str)
Return type:: UnitRef | None

list_firmware_builds()[source]

List all firmware build unit names.

Return type:: List[str]

get_firmware(name)[source]

Get a firmware build by name (returns FirmwareBuild object).

This is a convenience method that returns the build object directly, rather than the UnitRef wrapper.

Parameters:: name (str)
Return type:: FirmwareBuild | None

list_firmware()[source]

List all firmware build names.

Convenience alias for list_firmware_builds().

Return type:: List[str]

iter_firmware_builds()[source]

Iterate over all firmware build units.

Yields:: UnitRef objects for each firmware build.

get_toolchain(name)[source]

Get a toolchain by name.

Parameters:: name (str)
Return type:: Toolchain | None

list_toolchains()[source]

List all loaded toolchain names.

Return type:: List[str]

get_ip(name)[source]

Get an IP manifest by name.

Parameters:: name (str)
Return type:: IPManifest | None

list_ips()[source]

List all discovered IP manifest names.

Return type:: List[str]

property sim: SimConfig: Simulation configuration.

property synth: SynthConfig: Synthesis configuration.

property lint: LintConfig: Lint configuration.

property constraints: ConstraintsConfig: Constraints configuration.

property fpga: FPGAConfig: FPGA configuration.

is_enabled(feature)[source]

Check if a feature is enabled.

Parameters:: feature (str)
Return type:: bool

resolve_path(path)[source]

Resolve path relative to project root.

Parameters:: path (str | Path)
Return type:: Path

get_sim_tool(name=None)[source]

Get simulator tool configuration.

Parameters:: name (str | None)
Return type:: SimToolConfig | None

refresh()[source]

Force re-discovery of all manifests.

Return type:: None

summary()[source]

Get a summary of discovered components by type.

Returns:: Dict mapping component type to count
Return type:: Dict[str, int]

validate_all()[source]

Validate all discovered components.

Returns:: Dict mapping component type to list of validation messages
Return type:: Dict[str, List[Any]]

The main configuration class for loading and accessing project settings.

Example:

from aly.config import ProjectConfig

# Load project configuration
config = ProjectConfig.load()

# Access project info
print(f"Project: {config.project.name}")
print(f"Version: {config.project.version}")

# Get simulation config
sim_config = config.simulation
print(f"Default simulator: {sim_config.default_tool}")

Model Classes 

RTLManifest 

class aly.config.models.RTLManifest

RTL component manifest.

name: str: Manifest name

type: str: Must be “rtl”

modules: List[RTLModule]: List of RTL modules

packages: List[RTLPackage]: SystemVerilog packages

classmethod load(path: Path) → RTLManifest: Load manifest from YAML file.

get_module(name: str) → RTLModule | None: Get module by name.

get_all_files() → List[Path]: Get all RTL source files.

Example:

from pathlib import Path
from aly.config.models import RTLManifest

# Load RTL manifest
manifest = RTLManifest.load(Path("rtl/manifest.yaml"))

# Iterate modules
for module in manifest.modules:
    print(f"Module: {module.name}")
    for f in module.get_files():
        print(f"  - {f}")

RTLModule 

class aly.config.models.RTLModule

Single RTL module definition.

name: str: Module identifier

top: str: Top-level module name

files: List[str]: Source file paths/patterns

deps: List[str]: Dependencies on other modules

get_files() → List[Path]: Resolve and return all source files.

resolve_files(manifest_dir: Path) → List[Path]: Resolve files relative to manifest directory.

TestbenchManifest 

class aly.config.models.TestbenchManifest

Testbench manifest for simulation.

name: str: Manifest name

testbenches: List[Testbench]: Testbench definitions

test_suites: List[TestSuite]: Test suite groupings

classmethod load(path: Path) → TestbenchManifest: Load from YAML file.

get_testbench(name: str) → Testbench | None: Get testbench by name.

Testbench 

class aly.config.models.Testbench

Single testbench definition.

name: str: Testbench identifier

top: str: Top module name

files: List[str]: Testbench source files

rtl_deps: List[str]: RTL module dependencies

fw_deps: List[str]: Firmware dependencies

timeout: str | None: Simulation timeout

FirmwareManifest 

class aly.config.models.FirmwareManifest

Firmware build manifest.

name: str: Manifest name

toolchain: Toolchain: Compiler toolchain config

builds: List[FirmwareBuild]: Build definitions

classmethod load(path: Path) → FirmwareManifest: Load from YAML file.

get_build(name: str) → FirmwareBuild | None: Get build by name.

IPManifest 

class aly.config.models.IPManifest

Vendor IP block manifest.

name: str: IP name

vendor: str: Vendor name

version: str: IP version

files: List[str]: RTL source files

binaries: Dict[str, str]: Precompiled models

parameters: Dict[str, Any]: Configurable parameters

classmethod load(path: Path) → IPManifest: Load from YAML file.

get_rtl_files() → List[Path]: Get RTL source files.

has_simulation_model() → bool: Check for precompiled simulation model.

Backend API 

Backends provide tool abstraction for simulation and synthesis.

SimulatorBackend 

Base interface for simulation backends.

class aly.backends.SimulatorBackend

Abstract base for simulator backends.

abstractmethod compile(sources: List[Path], options: Dict) → bool: Compile HDL sources.

abstractmethod elaborate(top: str, options: Dict) → bool: Elaborate design hierarchy.

abstractmethod simulate(options: Dict) → SimResult: Run simulation.

SynthBackend 

Base interface for synthesis backends.

class aly.backends.SynthBackend

Abstract base for synthesis backends.

abstractmethod synthesize(sources: List[Path], top: str, options: Dict) → bool: Run synthesis.

abstractmethod implement(options: Dict) → bool: Run implementation (place & route).

abstractmethod generate_bitstream() → Path: Generate programming file.

Utility Functions 

Logging 

aly.log.get_logger(name: str) → Logger

Get a configured logger.

Parameters:: name – Logger name
Returns:: Configured logger instance

aly.log.setup_logging(level: str = 'INFO')

Configure logging for CLI usage.

Parameters:: level – Log level (DEBUG, INFO, WARNING, ERROR)

Configuration Utilities 

aly.configuration.find_project_root(start: Path = None) → Path | None

Find project root by looking for .aly directory.

Parameters:: start – Starting directory (default: current directory)
Returns:: Project root path or None

Template System 

class aly.templates.TemplateLoader[source]

Load and render project templates.

classmethod list_templates() → List[TemplateInfo][source]: List available templates.

load(name: str) → TemplateLoader: Load template by name.

render(output_dir: Path, variables: Dict): Render template to output directory.

Usage Examples 

Loading a Project 

from aly.config import ProjectConfig
from aly.configuration import find_project_root

# Find and load project
root = find_project_root()
if root:
    config = ProjectConfig.load(root)
    print(f"Loaded project: {config.project.name}")

Running Simulation 

from pathlib import Path
from aly.config import ProjectConfig
from aly.config.models import RTLManifest, TestbenchManifest
from aly.sim_xsim import XSimBackend

# Load configuration
config = ProjectConfig.load()

# Load manifests
rtl = RTLManifest.load(Path("rtl/manifest.yaml"))
tb = TestbenchManifest.load(Path("tb/manifest.yaml"))

# Get testbench
testbench = tb.get_testbench("tb_counter")

# Collect sources
sources = []
for dep in testbench.rtl_deps:
    module = rtl.get_module(dep)
    sources.extend(module.get_files())
sources.extend(testbench.get_files())

# Run simulation
backend = XSimBackend(config.simulation)
backend.compile(sources, {"waves": True})
backend.elaborate(testbench.top, {})
result = backend.simulate({"timeout": "1ms"})

print(f"Simulation {'passed' if result.passed else 'failed'}")

Programmatic Synthesis 

from pathlib import Path
from aly.config import ProjectConfig
from aly.config.models import RTLManifest
from aly.synth_vivado import VivadoBackend

# Load configuration
config = ProjectConfig.load()
rtl = RTLManifest.load(Path("rtl/manifest.yaml"))

# Get target configuration
target = config.synthesis.get_target("arty_a7")

# Collect all RTL files
sources = rtl.get_all_files()

# Run synthesis
backend = VivadoBackend(config.synthesis)
backend.synthesize(
    sources=sources,
    top=target.top,
    part=target.part,
    constraints=target.constraints
)

Next Steps 

Command Reference - CLI reference
Architecture - Internal architecture
Examples - More examples
