Linting

This guide covers RTL linting and static analysis.

Overview

ALY supports multiple linting backends:

Figure 20 Lint Backends

Basic Usage

# Lint specific module (--module is required when no files given)
aly lint --module cpu_core

# Use specific linter
aly lint --module cpu_core --tool slang

# Lint specific files
aly lint rtl/cpu.sv rtl/alu.sv

# Errors only (suppress warnings)
aly lint --module cpu_core --no-warnings

Lint Flow

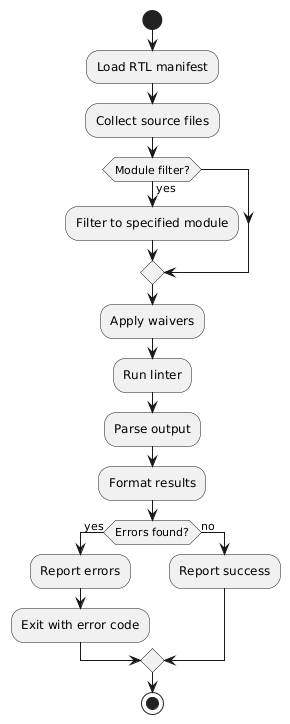

Figure 21 Lint Execution Flow

Configuration

Configure linting in .aly/config.yaml:

lint:
  default_tool: verilator
  severity: warning

  tools:
    verilator:
      bin: verilator
      args:
        - --lint-only
        - -Wall
        - -Wno-fatal
        - -Wno-DECLFILENAME

    slang:
      bin: slang
      args:
        - --lint-only
        - -Weverything

  rules:
    categories:
      style: true
      synthesis: true
      simulation: false

    enable:
      - UNUSED
      - WIDTH
      - PINMISSING

    disable:
      - DECLFILENAME
      - VARHIDDEN

  waivers:
    - "ip/**/*.v"
    - "**/deprecated/**"

Lint Rules (Under Development)

Verilator Rules

Common Verilator warnings:

Rule	Description
UNUSED	Unused signal or variable
UNDRIVEN	Signal never driven
WIDTH	Width mismatch in operations
PINMISSING	Missing port connection
CASEINCOMPLETE	Case statement not fully covered
LATCH	Inferred latch (usually unintended)
MULTIDRIVEN	Signal driven from multiple blocks
BLKSEQ	Blocking assignment in sequential block
COMBDLY	Delayed assignment in combinational block

Enable/disable specific rules:

lint:
  tools:
    verilator:
      args:
        - --lint-only
        - -Wall
        - -Wno-DECLFILENAME
        - -Wno-UNUSED

Rule Categories

Organize rules by category:

lint:
  rules:
    categories:
      style: true         # Coding style rules
      synthesis: true     # Synthesis-related checks
      simulation: false   # Simulation-only checks
      naming: true        # Naming conventions

Waivers

Exclude files or patterns from linting:

lint:
  waivers:
    # Vendor IP - not under our control
    - "ip/**/*.v"
    - "ip/**/*.sv"

    # Generated code
    - "**/generated/**"

    # Legacy code (to be refactored)
    - "rtl/legacy/**"

    # Testbench-only files
    - "**/*_tb.sv"

Inline Waivers

Disable warnings in code:

// verilator lint_off UNUSED
logic unused_signal;
// verilator lint_on UNUSED

/* verilator lint_off WIDTH */
assign narrow = wide;  // Intentional truncation
/* verilator lint_on WIDTH */

Output

The lint output shows errors and warnings in a unified format:

rtl/cpu_core.sv:42: warning: Signal 'debug_out' is not used [-WUNUSED]
rtl/alu.sv:15: warning: Width mismatch: 8 bits vs 16 bits [-WWIDTH]
rtl/decoder.sv:88: error: Case statement not fully covered [-WCASEINCOMPLETE]

=== Summary ===
Duration: 1.23s
Errors: 1
Warnings: 2

Severity Levels

Control warning display:

# Show errors and warnings (default)
aly lint --module cpu_core

# Show only errors (suppress warnings)
aly lint --module cpu_core --no-warnings

Severity hierarchy:

1. error - Must be fixed (always shown)

2. warning - Should be fixed (hidden with –no-warnings)

CI Integration (Under Development)

GitHub Actions

# .github/workflows/lint.yml
name: Lint RTL

on: [push, pull_request]

jobs:
  lint:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Install Verilator
        run: sudo apt-get install -y verilator

      - name: Install ALY
        run: pip install aly-tool

      - name: Run lint
        run: aly lint --module cpu_core

Pre-commit Hook

# .pre-commit-config.yaml
repos:
  - repo: local
    hooks:
      - id: aly-lint
        name: ALY Lint
        entry: aly lint --module cpu_core --no-warnings
        language: system
        files: \.(sv|v)$
        pass_filenames: false

Common Patterns

Avoiding Warnings

Unused signals:

// Bad - generates warning
logic unused_sig;

// Good - explicitly mark as unused
logic unused_sig /* verilator lint_off UNUSED */;

// Or use the signal
assign debug_out = unused_sig;

Width mismatches:

// Bad - implicit truncation
logic [7:0] narrow;
logic [15:0] wide;
assign narrow = wide;

// Good - explicit truncation
assign narrow = wide[7:0];

Incomplete case:

// Bad - missing default
always_comb begin
    case (sel)
        2'b00: out = a;
        2'b01: out = b;
    endcase
end

// Good - with default
always_comb begin
    case (sel)
        2'b00: out = a;
        2'b01: out = b;
        default: out = '0;
    endcase
end

Troubleshooting

Common Issues

Linter not found:

Ensure verilator or slang is installed and in your PATH:

# Check if verilator is available
verilator --version

# Install verilator (Ubuntu)
sudo apt-get install verilator

Syntax errors:

Check if the code compiles with the simulator first:

aly sim --top tb_design

False positives:

Use inline comments to suppress specific warnings in code.

Next Steps

• Simulation - Run simulations

• Synthesis (Under Development for Enhanced Features) - Synthesize designs

• Configuration - Full configuration reference
