Manifest System

ALY uses YAML manifests to describe project components. This reference covers all manifest types and their fields.

Overview 

Each component type has its own manifest format. Manifests are typically named manifest.yaml and placed in their respective directories.

Figure 10 Manifest Types

RTL Manifest 

RTL manifests define synthesizable hardware modules.

Schema 

# rtl/manifest.yaml
name: <string>           # Required: manifest name
type: rtl                # Required: must be "rtl"
version: <string>        # Optional: version (default: "1.0.0")
description: <string>    # Optional: manifest description
author: <string>         # Optional: author name
license: <string>        # Optional: license identifier
vendor: <string>         # Optional: vendor name
language: <string>       # Optional: verilog|systemverilog|vhdl

# Top module reference (name of a module in modules list)
top: <string>

# Global settings applied to all modules
includes: [<paths>]      # Include directories
defines:                 # Preprocessor defines
  KEY: value

# Package definitions (for SystemVerilog packages)
packages:
  - path: <path>         # Required: package file path
    name: <string>       # Optional: package name
    modules: [<list>]    # Optional: which modules use this package (empty = all)

# Module definitions
modules:
  - name: <string>       # Required: module identifier
    author: <string>     # Optional: module author
    version: <string>    # Optional: module version
    language: <string>   # Optional: module language
    top: <string>        # Optional: top-level module name
    files: [<paths>]     # Source files (supports globs)
    dependencies:        # Module dependencies
      - name: <string>   # Dependency name
        type: <string>   # rtl|package

Complete Example 

name: rv64i_core
type: rtl
version: 1.0.0
language: systemverilog

modules:
  - name: rv64i_core
    language: systemverilog
    files:
      - CPU.sv
      - PC.sv
    dependencies:
      - name: rv64i_pkg
        type: package

      - name: alu
        type: rtl

      - name: decoder
        type: rtl

      - name: regfile
        type: rtl

  - name: alu
    language: systemverilog
    top: alu
    files:
      - alu/*.sv

  - name: regfile
    files:
      - regfile/register_file.sv
      - regfile/reg_read.sv
      - regfile/reg_write.sv

  - name: decoder
    files:
      - decoder.sv
    dependencies:
      - name: alu
        type: rtl

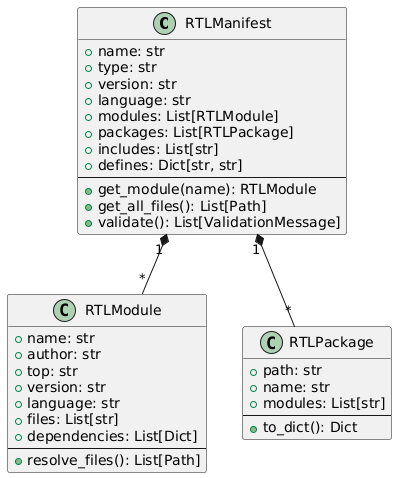

Module Class Diagram 

@startuml
skinparam backgroundColor transparent
skinparam defaultFontName sans-serif

class RTLManifest {
+name: str
+type: str
+version: str
+language: str
+modules: List[RTLModule]
+packages: List[RTLPackage]
+includes: List[str]
+defines: Dict[str, str]
--
+get_module(name): RTLModule
+get_all_files(): List[Path]
+validate(): List[ValidationMessage]
}

class RTLModule {
+name: str
+author: str
+top: str
+version: str
+language: str
+files: List[str]
+dependencies: List[Dict]
--
+resolve_files(): List[Path]
}

class RTLPackage {
+path: str
+name: str
+modules: List[str]
--
+to_dict(): Dict
}

RTLManifest "1" *-- "*" RTLModule
RTLManifest "1" *-- "*" RTLPackage
@enduml — Figure 11 RTLManifest Structure

Testbench Manifest 

Testbench manifests define simulation environments.

Schema 

# tb/manifest.yaml
name: <string>           # Required: manifest name
type: testbench          # Required: must be "testbench"
version: <string>        # Optional: version
description: <string>    # Optional: description
author: <string>         # Optional: author

# Testbench definitions
testbenches:
  - name: <string>       # Required: testbench identifier
    description: <string> # Optional: testbench description
    top: <string>        # Optional: top module name (defaults to name)
    files: [<paths>]     # Testbench source files
    includes: [<paths>]  # Include directories
    defines: {}          # Preprocessor defines
    dependencies:        # Dependencies
      - name: <string>   # Dependency name
        type: <string>   # rtl|firmware|package
    default_timeout: <int|str>  # Simulation timeout (int or "forever")
    plusargs: {}         # Runtime plusargs
    tags: [<tags>]       # Tags for filtering

# Test suites (group testbenches)
testsuites:
  - name: <string>       # Suite name
    description: <string> # Suite description
    testbenches: [<names>]  # List of testbench names
    parallel: <int>      # Number of parallel jobs
    timeout: <int>       # Suite-level timeout (seconds)
    stop_on_fail: <bool> # Stop on first failure

Complete Example 

name: rv64imac_tb
type: testbench
version: 1.0.0
description: Testbenches for RV64IMAC processor
author: Mohamed Aly

testbenches:
  - name: tb_rv64i
    description: Base RV64I testbench
    top: tb_rv64i
    files:
      - tb_rv64i.sv
    dependencies:
      - name: rv64i_soc
        type: rtl
      - name: rv64i_pkg
        type: package
      - name: rv64i
        type: firmware
    default_timeout: 100000
    tags: [integration]

  - name: tb_rv64i_alu
    description: ALU instruction test
    top: tb_rv64i
    files:
      - tb_rv64i_alu.sv
    dependencies:
      - name: rv64i_soc
        type: rtl
      - name: alu_test
        type: firmware
    default_timeout: 100000
    tags: [unit, alu]

testsuites:
  - name: instruction_tests
    description: All instruction tests
    testbenches:
      - tb_rv64i
      - tb_rv64i_alu
    parallel: 4
    timeout: 60

  - name: regression
    description: Full regression suite
    testbenches:
      - tb_rv64i
      - tb_rv64i_alu
    parallel: 1
    stop_on_fail: true

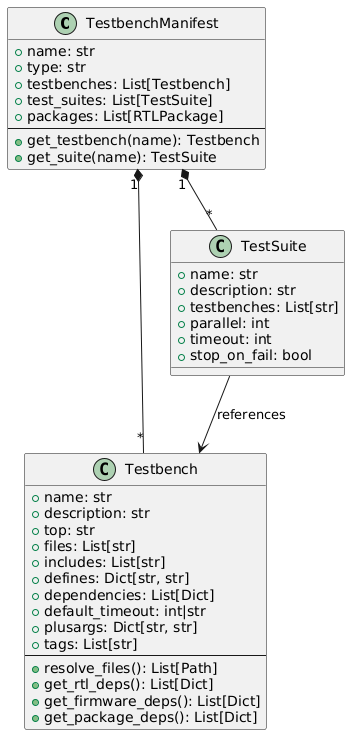

Testbench Class Diagram 

@startuml
skinparam backgroundColor transparent
skinparam defaultFontName sans-serif

class TestbenchManifest {
+name: str
+type: str
+testbenches: List[Testbench]
+test_suites: List[TestSuite]
+packages: List[RTLPackage]
--
+get_testbench(name): Testbench
+get_suite(name): TestSuite
}

class Testbench {
+name: str
+description: str
+top: str
+files: List[str]
+includes: List[str]
+defines: Dict[str, str]
+dependencies: List[Dict]
+default_timeout: int|str
+plusargs: Dict[str, str]
+tags: List[str]
--
+resolve_files(): List[Path]
+get_rtl_deps(): List[Dict]
+get_firmware_deps(): List[Dict]
+get_package_deps(): List[Dict]
}

class TestSuite {
+name: str
+description: str
+testbenches: List[str]
+parallel: int
+timeout: int
+stop_on_fail: bool
}

TestbenchManifest "1" *-- "*" Testbench
TestbenchManifest "1" *-- "*" TestSuite
TestSuite --> Testbench : references
@enduml — Figure 12 TestbenchManifest Structure

Firmware Manifest 

Firmware manifests define embedded software builds.

Schema 

# fw/manifest.yaml
name: <string>           # Required: manifest name
type: firmware           # Required: must be "firmware"
version: <string>        # Optional: version
description: <string>    # Optional: description
author: <string>         # Optional: author

# Default toolchain (can be overridden per-build)
toolchain: <string>      # Reference to toolchain name in toolchains.yaml

# Build definitions
builds:
  - name: <string>       # Required: build identifier
    author: <string>     # Optional: build author
    version: <string>    # Optional: build version
    languages: [<langs>] # Languages used (c, asm)
    sources: [<paths>]   # Source files (.c, .S, .asm)
    includes: [<paths>]  # Include directories
    linker_script: <path>  # Linker script
    toolchain: <string>  # Override toolchain
    defines: {}          # Preprocessor defines
    flags:               # Compiler/linker flags
      common: [<flags>]  # Flags for all tools
      c: [<flags>]       # C compiler flags
      asm: [<flags>]     # Assembler flags
      ld: [<flags>]      # Linker flags
    outputs:             # Output formats
      - format: elf|bin|hex|mem|coe|lst|map|disasm
        required: <bool>
        plusarg: <string>  # Plusarg name for simulation
    mem:                 # Memory file configuration
      - name: <string>   # Output filename
        format: <string> # Format (mem, hex, coe)
        word_width: <int>  # Word width (8, 16, 32, 64)
        byte_order: <string>  # little|big

Complete Example 

name: instr_test
type: firmware
author: Mohamed Aly
version: 1.0.0

toolchain: riscv64

builds:
  - name: bootloader
    languages: [asm, c]
    sources:
      - boot/start.S
      - boot/main.c
    includes:
      - include/
    linker_script: linkers/memory.ld
    flags:
      common: [-fno-builtin, -nostdlib]
      c: [-O2, -Wall]
      asm: [-x]
      ld: [-nostartfiles]
    outputs:
      - format: elf
      - format: mem
        plusarg: MEM_FILE
    mem:
      - name: memory_le.mem
        format: mem
        word_width: 64
        byte_order: little

  - name: application
    languages: [c]
    sources:
      - app/*.c
    includes:
      - include/
    linker_script: linkers/memory.ld
    flags:
      common: [-fno-builtin, -nostdlib]
      c: [-O2, -Wall]
      ld: [-nostartfiles]
    outputs:
      - format: elf
      - format: mem
    mem:
      - name: memory.mem
        format: mem
        word_width: 64
        byte_order: little

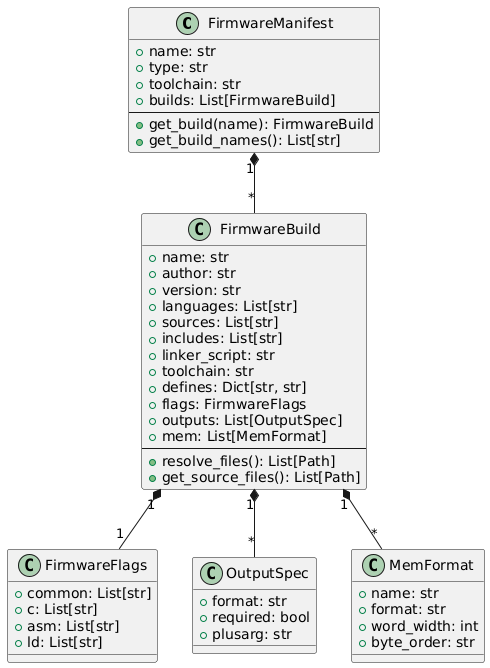

Firmware Class Diagram 

@startuml
skinparam backgroundColor transparent
skinparam defaultFontName sans-serif

class FirmwareManifest {
+name: str
+type: str
+toolchain: str
+builds: List[FirmwareBuild]
--
+get_build(name): FirmwareBuild
+get_build_names(): List[str]
}

class FirmwareBuild {
+name: str
+author: str
+version: str
+languages: List[str]
+sources: List[str]
+includes: List[str]
+linker_script: str
+toolchain: str
+defines: Dict[str, str]
+flags: FirmwareFlags
+outputs: List[OutputSpec]
+mem: List[MemFormat]
--
+resolve_files(): List[Path]
+get_source_files(): List[Path]
}

class FirmwareFlags {
+common: List[str]
+c: List[str]
+asm: List[str]
+ld: List[str]
}

class OutputSpec {
+format: str
+required: bool
+plusarg: str
}

class MemFormat {
+name: str
+format: str
+word_width: int
+byte_order: str
}

FirmwareManifest "1" *-- "*" FirmwareBuild
FirmwareBuild "1" *-- "1" FirmwareFlags
FirmwareBuild "1" *-- "*" OutputSpec
FirmwareBuild "1" *-- "*" MemFormat
@enduml — Figure 13 FirmwareManifest Structure

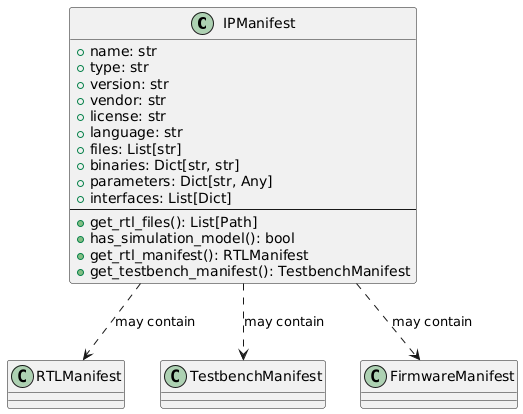

IP Manifest 

IP manifests define reusable or vendor-provided IP blocks.

Schema 

# ip/<name>/manifest.yaml
name: <string>           # Required: IP name
type: ip                 # Required: must be "ip"
version: <string>        # Version
vendor: <string>         # Vendor name
license: <string>        # License type

language: <string>       # HDL language

# Source files (for source IP)
files: [<paths>]
includes: [<paths>]
defines: {}

# Precompiled models (for binary IP)
binaries:
  simulation: <path>     # Precompiled simulation model

# Tool compatibility
compatibility:
  tools: [<tools>]       # Compatible simulators
  languages: [<langs>]   # Supported languages

# Design metadata
parameters:              # Configurable parameters
  PARAM_NAME: value
interfaces:              # Port interfaces
  - name: <string>
    direction: input|output|inout
    width: <int>

# Discovery metadata
discoverable: <bool>
tags: [<tags>]
namespace: <string>

# Nested manifests (for complex IP)
rtl_manifest: <path>     # Internal RTL manifest
tb_manifest: <path>      # Internal testbench manifest
fw_manifest: <path>      # Internal firmware manifest

Complete Example 

name: axi_uart
type: ip
version: 2.1.0
vendor: xilinx
license: Proprietary

language: systemverilog

files:
  - rtl/axi_uart.sv
  - rtl/uart_tx.sv
  - rtl/uart_rx.sv
  - rtl/axi_slave.sv

includes:
  - include

compatibility:
  tools:
    - xsim
    - questa
    - verilator
  languages:
    - systemverilog
    - verilog

parameters:
  BAUD_RATE: 115200
  DATA_BITS: 8
  STOP_BITS: 1
  PARITY: none
  FIFO_DEPTH: 16

interfaces:
  - name: s_axi
    direction: inout
    type: axi4_lite

  - name: tx
    direction: output
    width: 1

  - name: rx
    direction: input
    width: 1

  - name: interrupt
    direction: output
    width: 1

tags:
  - uart
  - axi
  - communication
namespace: xilinx

IP with Nested Manifests 

Complex IP can have internal structure:

name: complex_ip
type: ip
version: 1.0.0
vendor: internal

# Reference nested manifests
rtl_manifest: rtl/manifest.yaml
tb_manifest: tb/manifest.yaml
fw_manifest: fw/manifest.yaml

# OR auto-detect standard locations
# ip/complex_ip/rtl/manifest.yaml
# ip/complex_ip/tb/manifest.yaml
# ip/complex_ip/fw/manifest.yaml

IP Class Diagram 

@startuml
skinparam backgroundColor transparent
skinparam defaultFontName sans-serif

class IPManifest {
+name: str
+type: str
+version: str
+vendor: str
+license: str
+language: str
+files: List[str]
+binaries: Dict[str, str]
+parameters: Dict[str, Any]
+interfaces: List[Dict]
--
+get_rtl_files(): List[Path]
+has_simulation_model(): bool
+get_rtl_manifest(): RTLManifest
+get_testbench_manifest(): TestbenchManifest
}

IPManifest ..> RTLManifest : may contain
IPManifest ..> TestbenchManifest : may contain
IPManifest ..> FirmwareManifest : may contain
@enduml — Figure 14 IPManifest Structure

Validation 

ALY validates manifests when loading them. Validation checks:

Required fields are present
Referenced files exist
Dependencies are valid
Type values are correct

Validation messages have severity levels:

Level	Description
`ERROR`	Fatal issues that prevent loading
`WARNING`	Non-fatal issues that should be addressed
`INFO`	Informational messages

File Resolution 

File paths in manifests are resolved relative to the manifest location:

project/
+-- rtl/
|   +-- manifest.yaml      # Manifest location
|   +-- core/
|   |   +-- cpu.sv         # files: ["core/cpu.sv"]
|   +-- include/           # includes: ["include"]

Glob patterns are expanded:

files:
  - "*.sv"           # All .sv files in same directory
  - "core/*.sv"      # All .sv files in core/
  - "**/*.sv"        # All .sv files recursively

Next Steps 

Configuration - Project configuration reference
Command Reference - CLI commands for working with manifests
API Reference - Python API for manifest handling
