Architecture

This document describes ALY’s internal architecture and design principles.

System Overview

ALY is designed as a modular, extensible tool for HDL development workflows.

Figure 28 High-Level Architecture

Module Structure

Figure 29 Python Module Organization

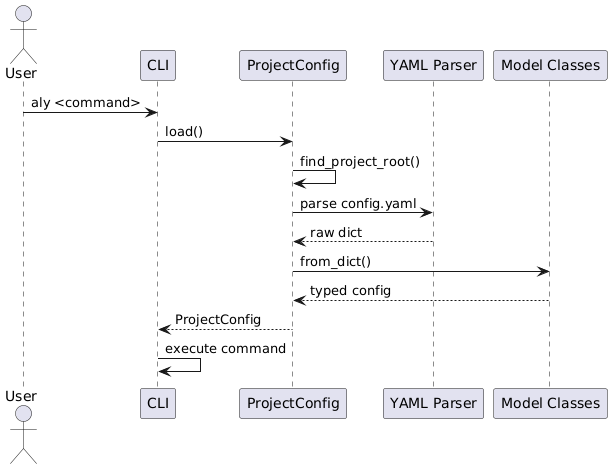

Configuration System

The configuration system uses a hierarchical loading mechanism.

Figure 30 Configuration Loading Sequence

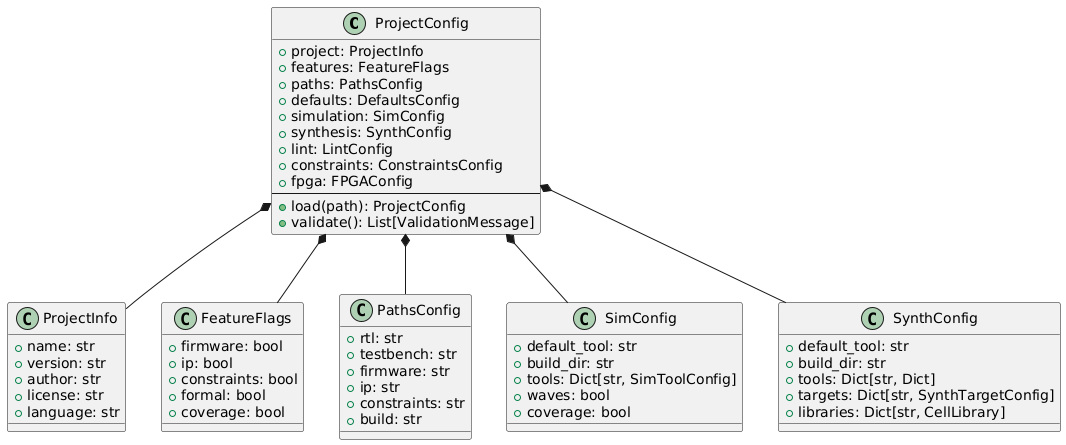

Configuration Class Hierarchy

Figure 31 Configuration Classes

Unit Registry System

ALY uses a unified unit registry that tracks individual components (modules, testbenches, builds) separately from their parent manifests. This enables efficient lookup and dependency resolution without requiring knowledge of the parent manifest.

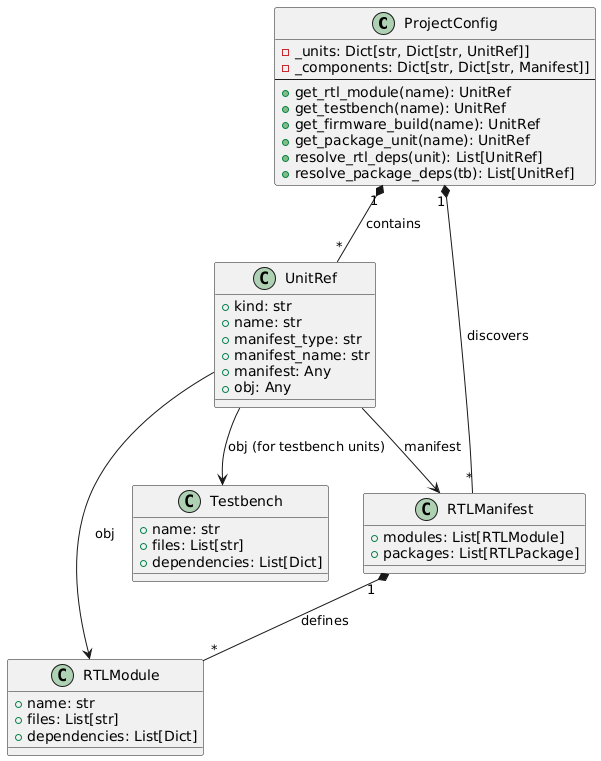

Figure 32 Unit Reference Architecture

The unit registry provides several key capabilities:

Direct Lookup

Components can be retrieved by name without knowing which manifest contains them:

# Get RTL module from anywhere in the project
ref = config.get_rtl_module("cpu_core")
module = ref.obj          # RTLModule object
manifest = ref.manifest   # Parent RTLManifest

Dependency Resolution

Dependencies are resolved recursively with automatic cycle detection:

# Resolve all RTL dependencies for a testbench
deps = config.resolve_rtl_deps(testbench)
for dep_ref in deps:
    module = dep_ref.obj
    files = dep_ref.manifest.get_files_for_module(module.name)

Type Safety

Each unit type has dedicated accessor methods with proper typing:

# Type-safe accessors
rtl_modules = config.list_rtl_modules()      # List[str]
testbenches = config.list_testbenches()      # List[str]
fw_builds = config.list_firmware_builds()    # List[str]
packages = config.list_packages()            # List[str]

Manifest Context

Units maintain bidirectional references to their parent manifests for path resolution and file access:

ref = config.get_rtl_module("alu")

# Access module object
module_name = ref.obj.name
module_files = ref.obj.files

# Access parent manifest for path resolution
resolved_files = ref.manifest.get_files_for_module(ref.obj.name)

Unit Types

The registry tracks four unit types:

Unit Kind	Source	Description
rtl_module	RTL manifests	Individual synthesizable modules
testbench	Testbench manifests	Individual simulation testbenches
firmware_build	Firmware manifests	Individual firmware build configurations
package	RTL manifests	Named SystemVerilog packages

Discovery Process

Units are registered during manifest discovery:

Figure 33 Unit Registration Flow

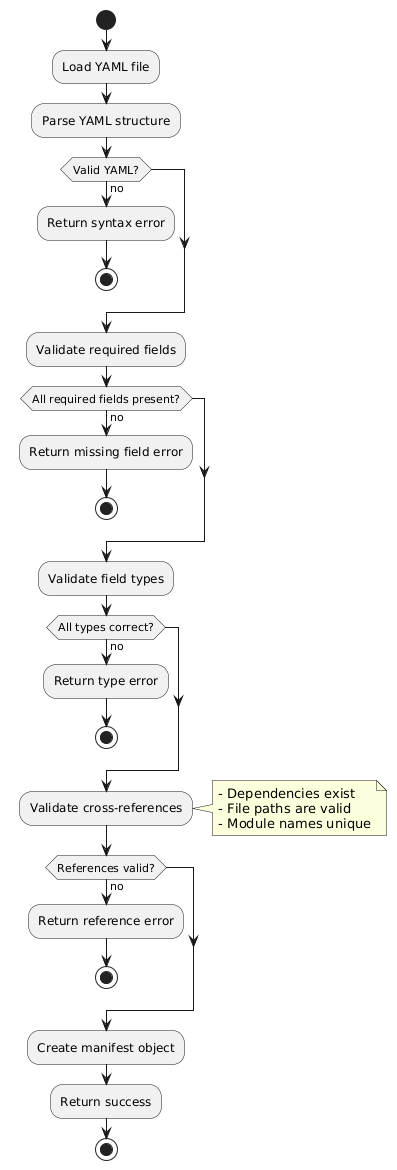

Manifest Validation

ALY validates manifests at load time to catch configuration errors early.

Figure 34 Manifest Validation Process

Validation checks include:

• Syntax validation: YAML structure is well-formed

• Schema validation: Required fields are present with correct types

• Reference validation: Dependencies reference existing components

• Path validation: File paths exist relative to manifest location

• Uniqueness validation: Module/build names are unique within manifest

• Type compatibility: Dependency types match referenced component types

Validation errors are reported with the manifest file path, line number (when available), and a descriptive error message to help users quickly locate and fix issues.

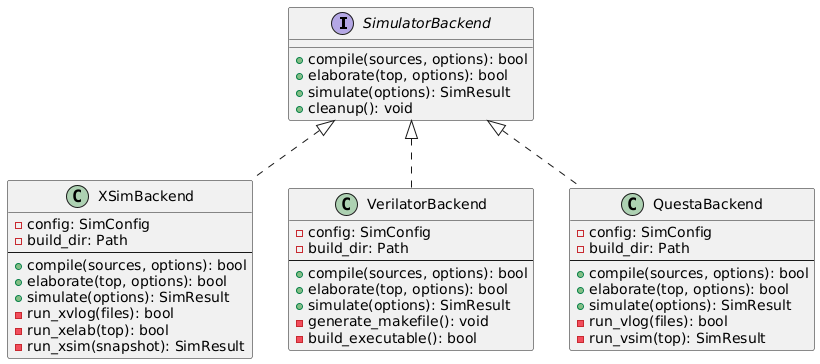

Backend System

Backends abstract tool-specific implementations.

Figure 35 Simulator Backend Architecture

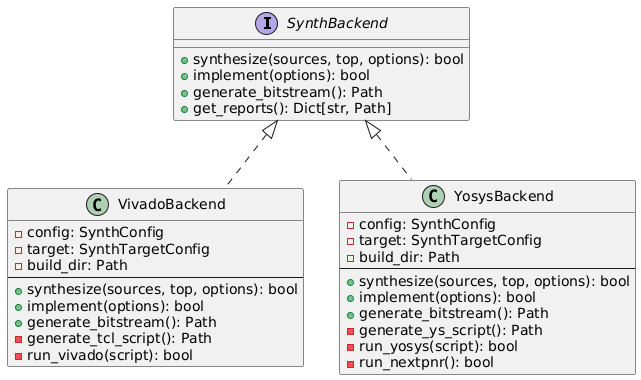

Synthesis Backend Architecture

Figure 36 Synthesis Backend Architecture

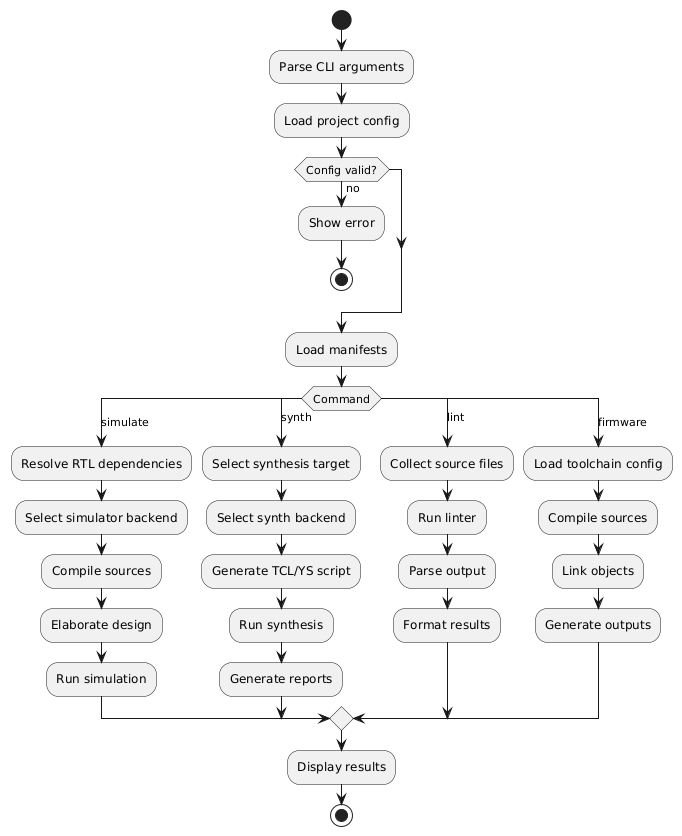

Command Processing

Commands are processed through the Typer CLI framework.

Figure 37 Command Processing Flow

Error Handling

ALY uses a structured error handling approach to provide clear, actionable feedback.

Table 1 Error Categories

Error Type	Description	Example
Configuration Error	Invalid or missing configuration files	config.yaml not found in project root
Manifest Error	Invalid manifest structure or references	Module 'alu' referenced but not found
Dependency Error	Missing or circular dependencies	Circular dependency detected: cpu → alu → cpu
Tool Error	External tool execution failure	XSim compilation failed: syntax error in counter.sv
File Error	Missing or inaccessible files	File not found: rtl/counter.sv
Backend Error	Backend-specific errors	Vivado backend requires --part argument

Error messages include:

• Context: Which file or component caused the error

• Location: Line number or path when available

• Description: Clear explanation of what went wrong

• Suggestion: Recommended fix or next steps

Example error output:

Error: Manifest validation failed
File: testbench/tb_cpu/manifest.yaml
Line: 12
Issue: Dependency 'cpu_core' not found

The testbench references RTL module 'cpu_core' but this module
does not exist in rtl/manifest.yaml.

Suggestion: Add cpu_core to rtl/manifest.yaml or check the spelling.

Dependency Resolution

ALY resolves module dependencies through a graph-based approach.

Figure 38 Dependency Resolution Example

Resolution Algorithm

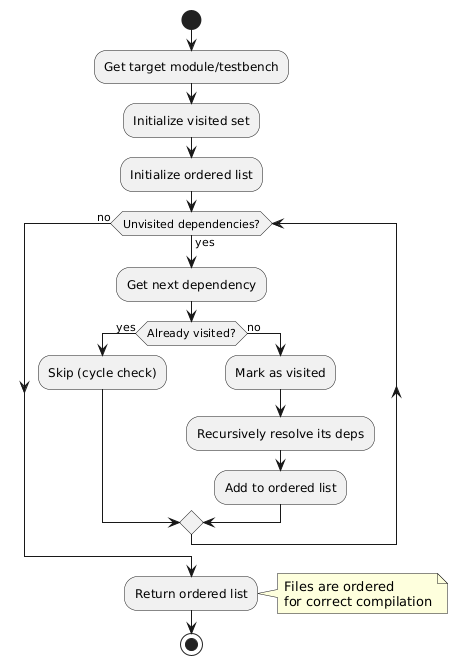

Figure 39 Dependency Resolution Algorithm

File Organization

aly-tool/
+-- src/
|   +-- aly/
|       +-- __init__.py          # Package init
|       +-- __main__.py          # Entry point
|       +-- commands.py          # CLI command registration
|       +-- configuration.py     # Config loading utilities
|       +-- backends.py          # Backend registry
|       +-- util.py              # Utility functions
|       +-- log.py               # Logging setup
|       |
|       +-- app/                 # CLI command implementations
|       |   +-- main.py          # Main app
|       |   +-- init.py          # Project init
|       |   +-- simulate.py      # Simulation commands
|       |   +-- synthesize.py    # Synthesis commands
|       |   +-- lint.py          # Linting commands
|       |   +-- firmware.py      # Firmware commands
|       |   +-- program.py       # FPGA programming
|       |   +-- config.py        # Config commands
|       |   +-- rtl.py           # RTL management
|       |   +-- ip.py            # IP management
|       |   +-- constraints.py   # Constraint management
|       |
|       +-- config/              # Configuration system
|       |   +-- __init__.py
|       |   +-- project_config.py
|       |   +-- models/          # Data model classes
|       |       +-- __init__.py
|       |       +-- core.py      # Core config models
|       |       +-- rtl.py       # RTL manifest
|       |       +-- testbench.py # Testbench manifest
|       |       +-- firmware.py  # Firmware manifest
|       |       +-- ip.py        # IP manifest
|       |       +-- tools.py     # Tool configs
|       |       +-- helpers.py   # Helper classes
|       |
|       +-- sim_xsim.py          # XSim backend
|       +-- sim_verilator.py     # Verilator backend
|       +-- sim_questa.py        # QuestaSim backend
|       +-- synth_vivado.py      # Vivado backend
|       +-- synth_yosys.py       # Yosys backend
|       +-- fw_gcc.py            # GCC firmware backend
|       |
|       +-- templates/           # Project templates
|           +-- loader.py        # Template loader
|           +-- basic/           # Basic template
|           +-- soc/             # SoC template
|
+-- docs/                        # Documentation
+-- tests/                       # Test suite

Design Principles

1. Modularity: Each component is self-contained and testable

2. Extensibility: New backends can be added without modifying core

3. Configuration-Driven: Behavior controlled through YAML configuration

4. Tool Abstraction: Unified interface regardless of underlying tool

5. Manifest-Based: Components described declaratively

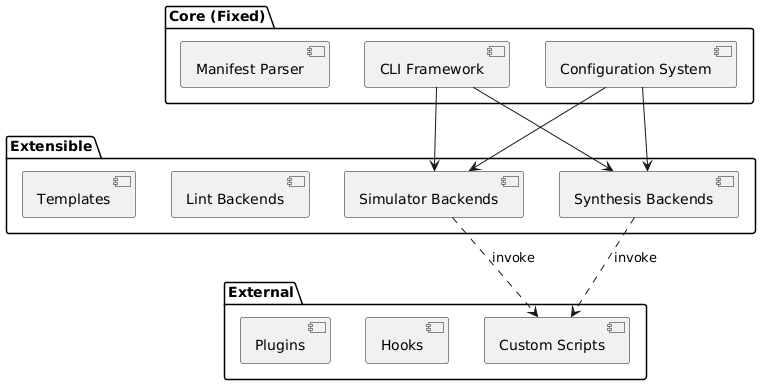

Extension Points

Figure 40 Extension Points
